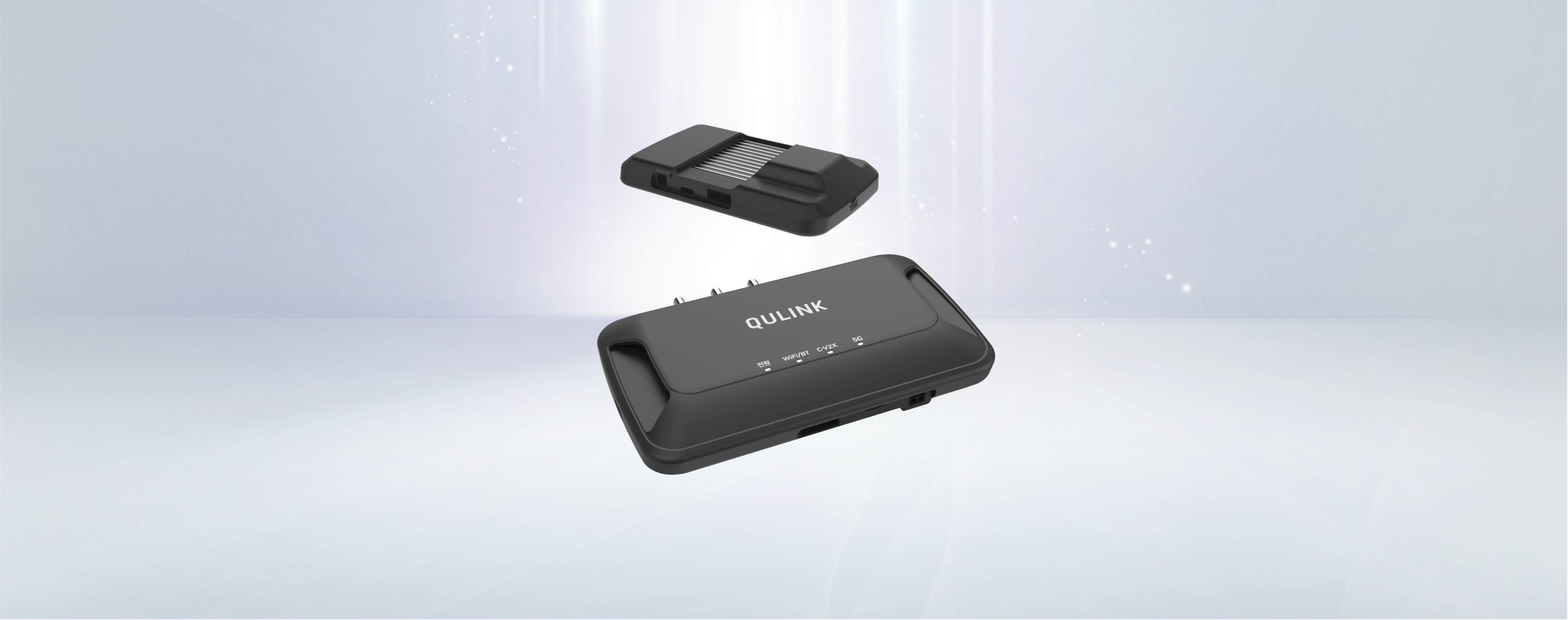

QULINK-OBU (On Board Unit) is a device installed in vehicles that enables communication with external systems such as road infrastructure and other vehicles. The OBU facilitates data exchange for various applications, including traffic management, navigation, and safety systems.
.png)
ㆍCommunication: Exchanges data with RSUs and other vehicles.
ㆍData Handling: Receives and sends traffic and vehicle information.
ㆍNavigation: Provides real-time traffic updates and route guidance.
ㆍSafety: Issues warnings about potential hazards.
ㆍTraffic Management: Helps improve traffic flow and reduce congestion.
Specification |
|
|---|---|
| C-V2X/DSRC | C-V2X: 23dBm / DSRC: 20dBm B47 (5855~5925, 30MHz) |
| 5G NR/LTE | 23dBm (4x2 MIMO) |
| Wi-Fi/Bluetooth | Internal chip antenna (2.4/5GHz) |
| Power | Red |
| Status | Green (V2X, LTE/5G NR, Wi-Fi/Bluetooth) |
| Security | W/ECDSA Block |
| Debug | UART 4PIN (1 port for Debug) |
| Size | 138.5 x 81 x 30.7 (W x H x D, mm) |
| Operating | -30 ~ 65°C |
| Storage | -40 ~ 85°C |
